Description

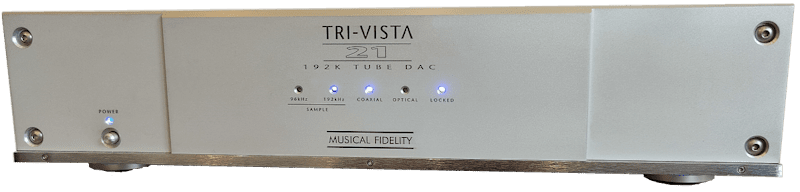

maudifi Stage 2 upgrade for the Tri-Vista 21 Tube DAC.

A further step-up from the maudifi Stage 1.5 upgrade for the Tri-Vista 21 Tube DAC, this step focuses on the main DAC printed circuit board.  Even greater detail retrieval and clarity over the previous stages, but also increased soundstage width and depth, reduced graininess, better instrument separation, darker background and generally an immersive musical experience.  With respect to sound quality, the Stage 2 makes the Tri-Vista 21 competitive against the current generation of high-end DACs.

This Stage 2 upgrade service includes all upgrades present in the Stage 1 and Stage 1.5, plus:

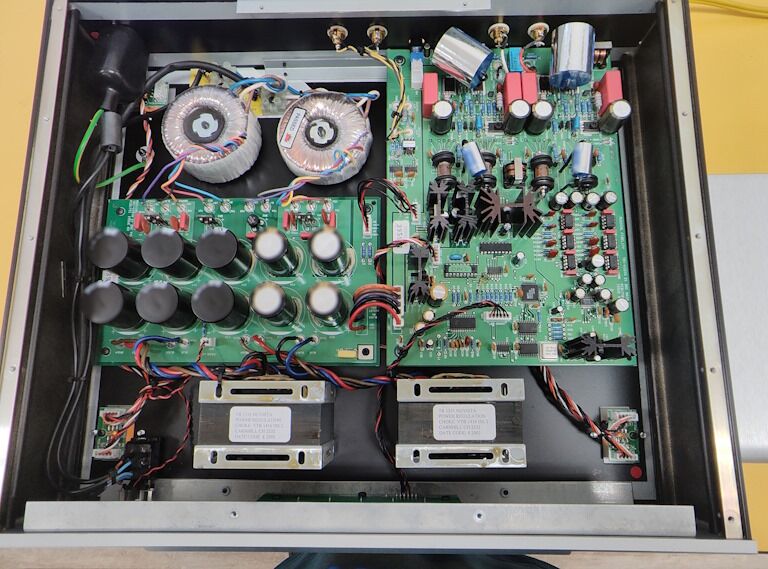

Stage 2 – Main DAC PCB

• All op-amps replaced with higher quality monolithic op-amps.
  • Turned pin DIL sockets included to make future upgrades easy.
• Replacements for all generic electrolytic decoupling capacitors with function specific ones,
  • Includes high audio-grade ones, particularly around the DAC and subsequent analogue stages.
  • There are a lot of them.
  • The non-audio related ones are also replaced for longevity.
• Additional bypass film capacitors
• Ceramic bypass capacitors around op-amps replaced with polyester/PET ones.
• Replace large local valve stage bypass capacitors.
• True audio-grade polypropylene film capacitors for valve stage input coupling
• True audio-grade polypropylene film capacitors for output coupling
• Replacement grommet mounts for the tubes, as these stiffen with heat over the years.

All electronic components are from leading manufacturers, including Wima, Burr Brown, Texas Instruments, Nichicon, Obbligato or ClarityCap.
